Multi-Zone Ultrasonic Inspection of Bars and Shafts

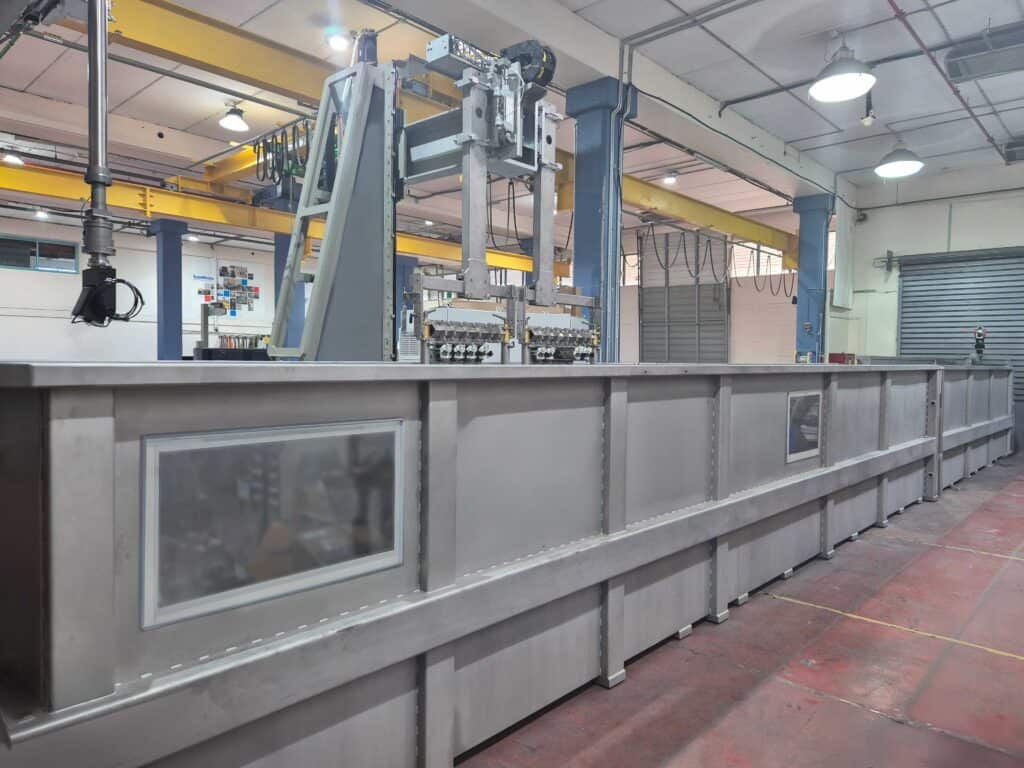

Our LS-200BR-SH Series – Advanced Ultrasonic Immersion Inspection for Bars & Shafts – has successfully completed acceptance testing and is now en route to the customer!
ScanMaster Systems (IRT) proudly delivers a turn-key ultrasonic immersion scanning system, purpose-built for high-performance, aerospace-grade inspection of bars, billets, and complex shafts.
✅ Key Features:
• Immersion tank with integrated bar & shaft rotator and calibration bar rotator
• Dual-bridge design:
– Bridge 1: Motorized swivel-gimbal-gimbal transducer manipulator (U, A, B axes) for full surface coverage
– Bridge 2: Multi-zone transducer holder with up to 10 transducers
• Supports part diameters from 50 mm to 400 mm, weights up to 4,500 kg
• Part length: 800 mm to 6,000 mm | Calibration bars: 500–1,500 mm
🎯 Standards Compliance:
GE (P29TF82, P3TF52, P3TF15, P3T34) | Rolls-Royce (RRP58002, RPS58001) | Pratt & Whitney (SIM-1, SIM-13) | SAFRAN (DMC0020, DMC0027)
With robust motion control, advanced UT electronics, and ScanMaster’s proprietary software, the LS-200BR-SH ensures precision, repeatability, and productivity for the most demanding aerospace forging inspection environments.
