PHAsisX - The Pocket Sized Phased Array Spot Weld Inpection Boxs

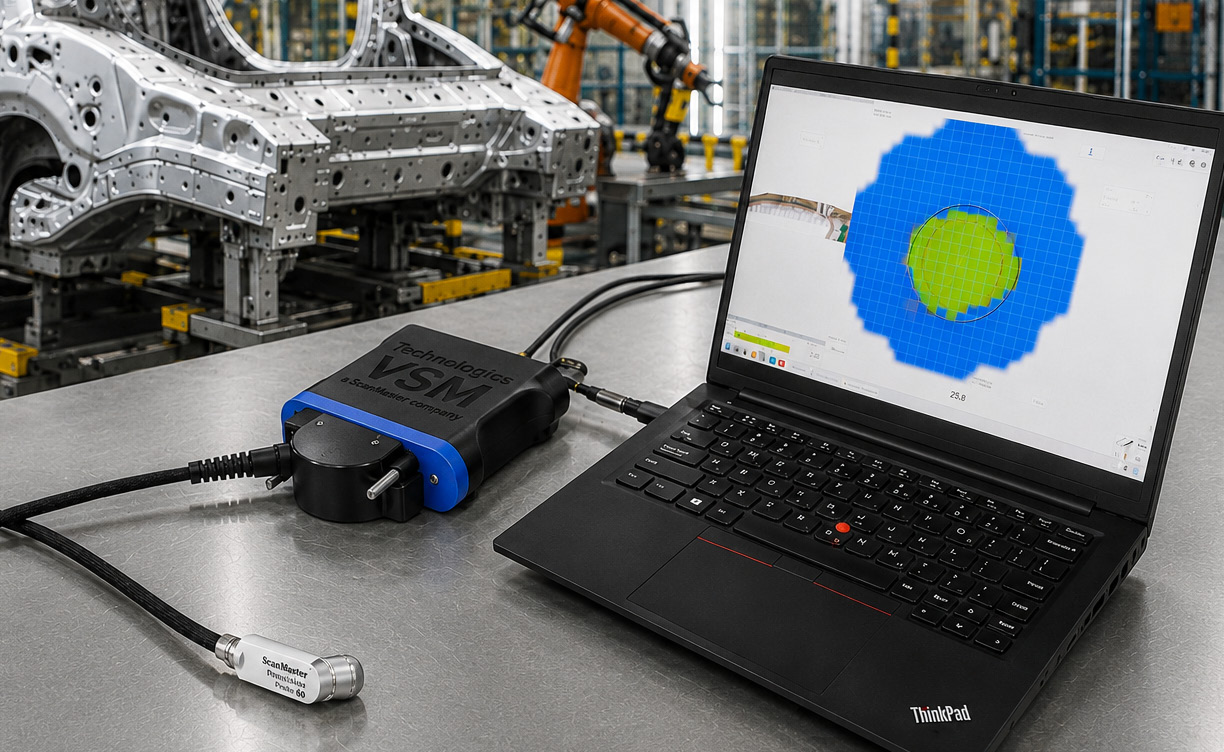

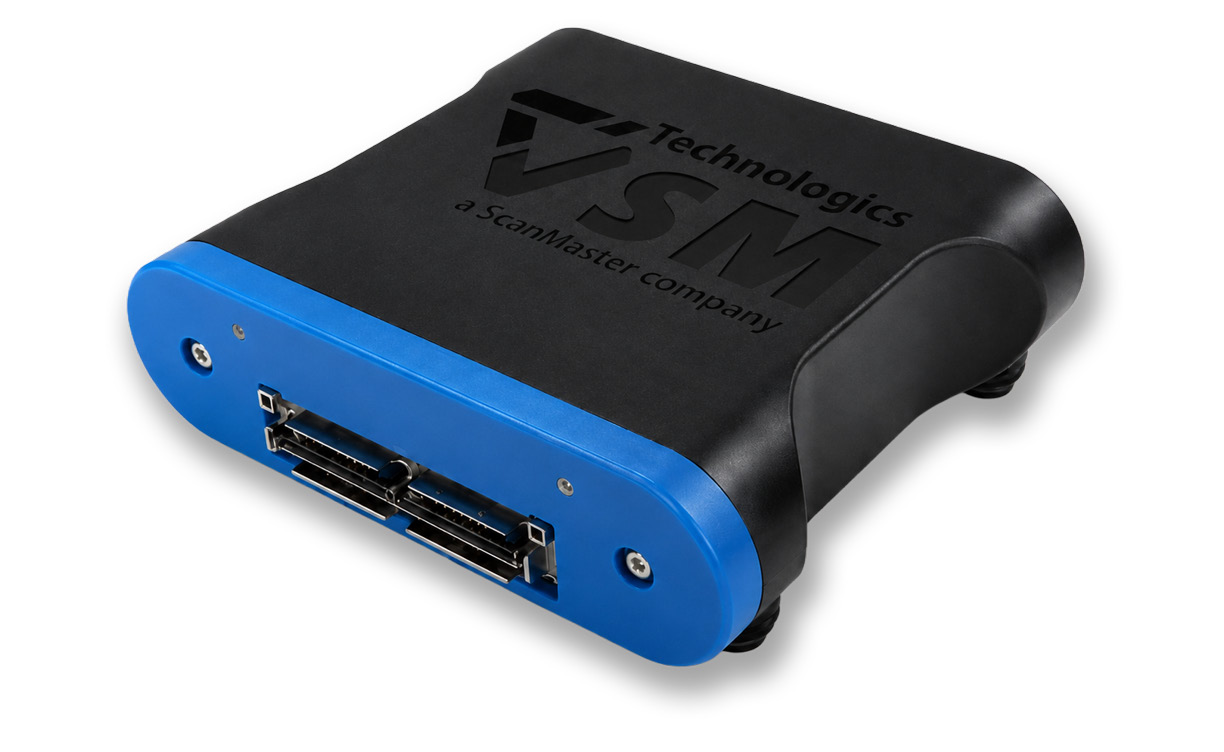

Everything the PHAsis platform delivers - in a box that fits in your bag. PHAsisX is a small, lightweight Phased-Array unit for non-destructive resistance spot-weld inspection. Connect it to any laptop or tablet over a single USB cable, add a probe and couplant, and you have a full imaging inspection system ready to travel.
At a Glance
- Single USB-cable connection to your own PC or tablet
- Compatible with 9X9 standard spot-weld probe
- Runs the PHAsis and UT/x imaging & evaluation software
Features
- Phased array imaging
produces a true D-Scan image of the weld nugget, not just an OK/NOK verdict - Full probe compatibility
Compatible with 9X9 standard spot-weld probe - PHAsis software
same imaging, test-planning and evaluation environment as the PHAsis family - Compact & lightweight

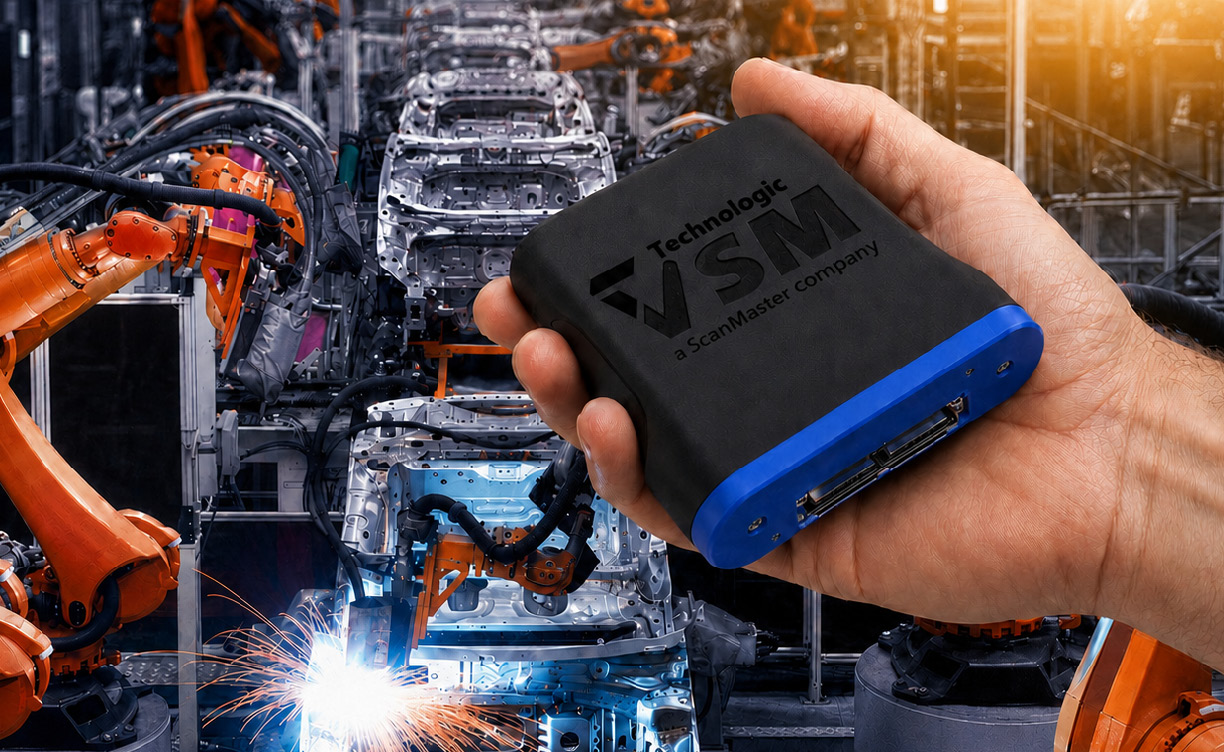

a true “grab and go” box - the smallest member of the PHAsis family
From Signal To Decision
- Matrix probe elements cover the full spot-weld area in a single placement
- The software renders the nugget as a colour D-Scan and supports automatic evaluation
- Imaging reduces reliance on operator interpretation
of raw A-scan traces
Benefits
- Maximum portability
One small box plus a USB cable. Easy to ship, easy to stock, easy to take to any line or inspection station - See the weld
Imaging results make weld-nugget quality visible and easier to interpret than single channel A-scans
- Lower barrier to adopt
Customers use hardware they already own, reducing the cost and footprint of getting started - Minimized Downtime
Compact and easy to stock, PHAsisX allows local spare availability-reducing downtime to near zero with instant system swap when needed
Full Backward Compatibility
Works seamlessly with all PHAsis and UT/x systems for straightforward upgrades and uninterrupted operation.
